Description

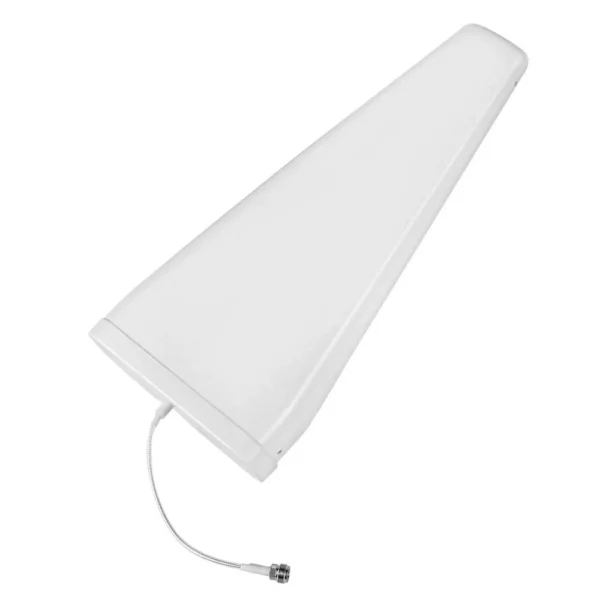

The SureCall SC-530W is a high-performance, ultra-wideband directional Yagi antenna engineered to enhance cellular signal reception in challenging environments. Operating across a broad frequency range of 617–2700 MHz, it supports multiple generations of cellular networks, including 2G, 3G, 4G LTE, and 5G.
With a maximum gain of up to 9 dBi, the SC-530W effectively extends the reach of your signal booster system, making it ideal for rural or remote areas where signal strength is weak. Its directional design focuses signal reception and transmission in a specific direction, allowing for targeted coverage and improved performance.
The antenna features a durable PC+ABS housing and is designed to withstand harsh outdoor conditions, operating reliably in temperatures ranging from -22°F to +140°F. It comes equipped with an N-Female connector and includes mounting hardware compatible with poles up to 2 inches in diameter.
For optimal performance, the SC-530W should be connected to your signal booster using SC-400 coaxial cable (sold separately). Proper alignment towards the nearest cell tower is essential to maximize signal gain and coverage.
📦 Package Contents
SureCall SC-530W Yagi Antenna
Mounting Hardware (compatible with poles up to 2″ diameter)
User Manual
📊 Technical Specifications
Frequency Range: 617–697 / 698–960 / 1710–2700 MHz
Gain: 7 / 8 / 9 dBi
Impedance: 50 Ohm
VSWR: ≤2.0
Polarization: Vertical
Beamwidth: H: 90° / E: 60° (varies by frequency)
Maximum Power: 50 Watts
Connector Type: N-Female
Dimensions: 17.3″ x 8″ x 1.45″
Weight: 2 lb 4 oz
Operating Temperature: -22°F to +140°F
Mounting: Pole mount (up to 2″ diameter)
Material: PC+ABS
